NYTRO E ROAD
The Nytro ROAD is destined to mark a new way. It is one of the lightest E-Road bikes on the market, with an unmistakably iconic Pinarello design.
Prepare to face what you previously thought impossible: Nytro E offers you its power to experience the very best of cycling.
ROAD specific geometry with the reactivity that characterizes our racing products merged with a more comfortable riding position.
POWER UP YOUR WAY
The new Nytro E-line opens up a world of possibilities to experience cycling! This range is designed for all cyclists looking to enjoy the emotions of cycling. It’s created with adventure in mind, allowing riders to tackle long rides and the steep climbs of Alpine passes with more agility and confidence than a traditional road bike.
INNOVATION:
CARBON T900 UD
The right balance between reactivity, dampening capabilities and lightness for competition.
ONDA FORK
A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.
ASYMMETRIC FRAME
Since the beginning, Pinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
TQ-HPR50 DRIVE UNIT
The Harmonic Pin Ring Transmission (HPR) is a result of TQ’s decades-long experience in the development and engineering of electric motors for robots, satellites, space stations and Mars rovers.
* groupset on the picture might differ from bike specification
CE | 450 | 488 | 510 | 535 | 555 | 575 |
---|---|---|---|---|---|---|
CC | 460 | 500 | 530 | 550 | 575 | 600 |
L | 515 | 532 | 545 | 560 | 580 | 595 |
A [°] | 74.5 | 74 | 73.7 | 73.4 | 73 | 72.9 |
B [°] | 71.75 | 72 | 72.25 | 72.5 | 72.75 | 73 |
P | 420 | 420 | 420 | 420 | 420 | 420 |
T | 130 | 140 | 151 | 170 | 200 | 225 |
D | 72 | 72 | 72 | 72 | 72 | 72 |
R | 47 | 47 | 47 | 47 | 47 | 47 |
G | 373 | 373 | 373 | 373 | 373 | 373 |
REACH | 358.4 | 369.7 | 377.5 | 384.2 | 391.4 | 398 |
STACK | 545.4 | 555.8 | 567.2 | 586.2 | 615.8 | 640.6 |

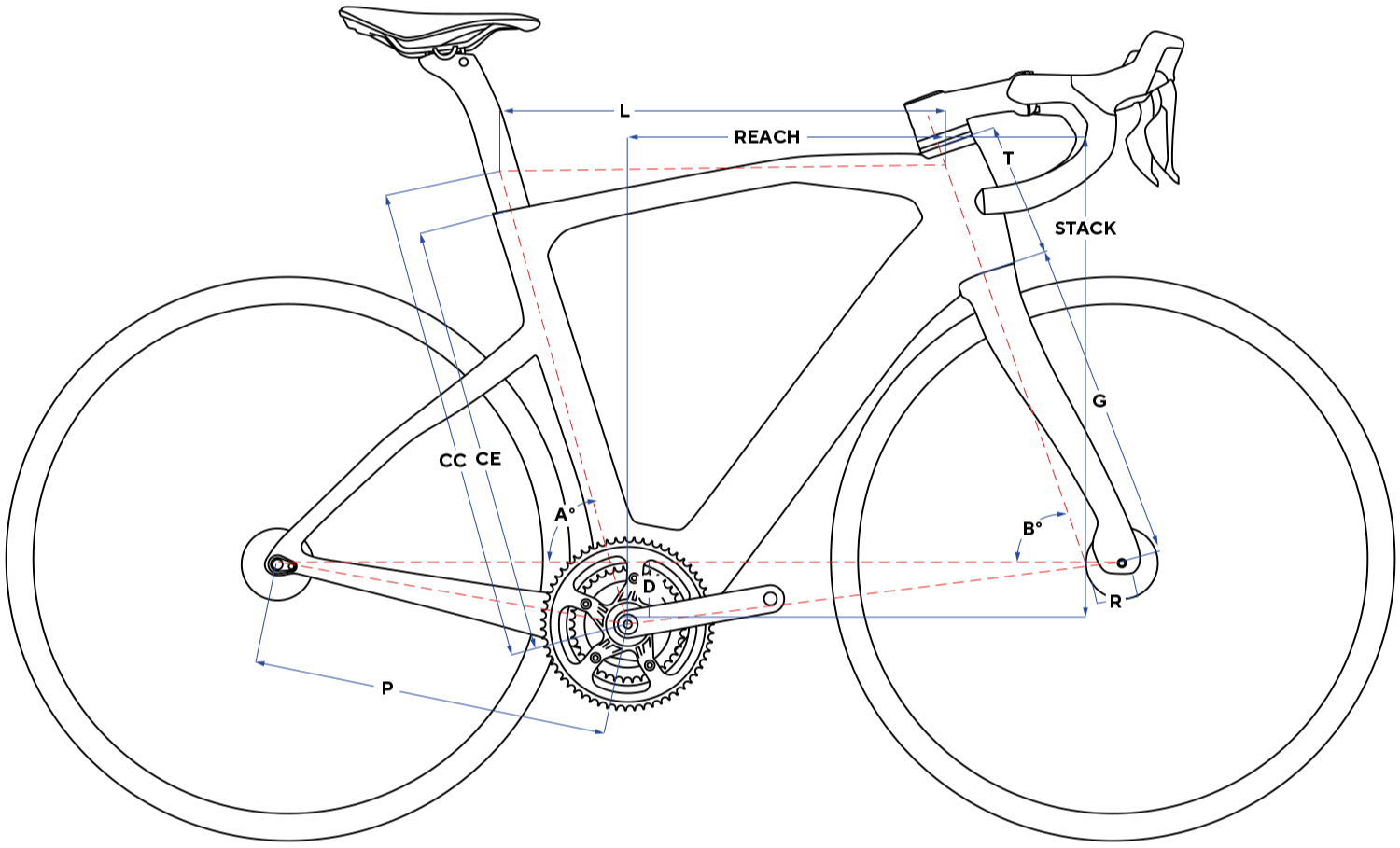

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
Specs
Motor | TQ-HPR50 |
---|---|
Battery | 360 Wh integrated Battery |
Fork | Onda Fork, 47mm Rake |
Stem | Tiger Alu Aero TiCR - 130mm |
Chain | Ultegra CN-M8100 |
Frame | T900 UD Carbon Road Frame |
Tires | Pirelli P7 |
Brakes | Ultegra BR-R8170 |
Rotors | Ultegra RT800 160MM CL |
Saddle | MOST Lynx Aircross |
Wheels | MOST Carbon Ultrafast |
Headset | MOST 1.5" Bearing Kit (for TiCR) |
Crankset | MOST - 175MM |
Seatpost | Carbon Aero Seat Post |
Shifters | Ultegra Di2 ST-R8170 2x12sp |
Chainrings | 50-34T |
Handlebars | Jaguar XA Aero TiCR - 46cm |
Tape/Grips | Ultragrip EVO 3mm |
Rear Derailleur | Ultegra Di2 RD-R8150 12sp |
Front Derailleur | Ultegra Di2 FD-R8150 Braze-On |
Cassette/Freewheel | Ultegra R8100 11-34T |
* Subject to change without notice.
Part Numbers
Option | MPN |
---|---|
Ghost Black / 46cm / 700c | C1758174163-19715 |
Ghost Black / 50cm / 700c | C1758174163-19716 |
Ghost Black / 53cm / 700c | C1758174163-19717 |
Ghost Black / 55cm / 700c | C1758174163-19718 |
Ghost Black / 57.5cm / 700c | C1758174163-19719 |
Ghost Black / 60cm / 700c | C1758174163-19720 |
