Details

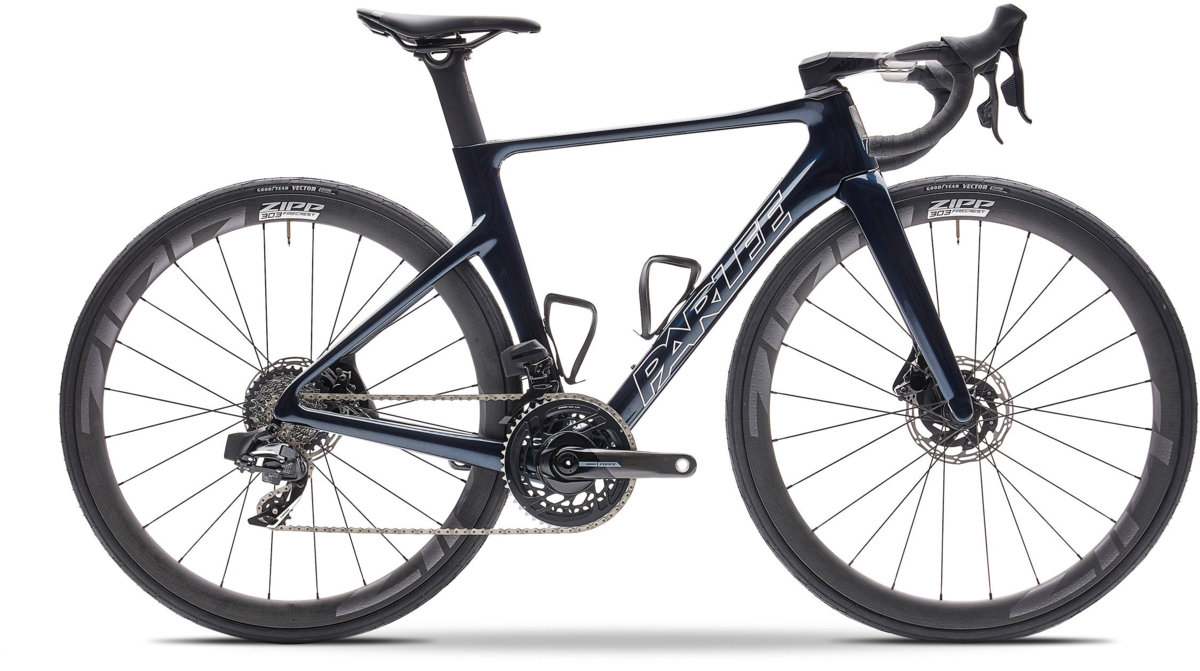

The next generation of performance road bicycle is here.
Created by cycling’s carbon-fiber pioneers, the RZ7’s aerodynamic shape cheats the wind and rewards every pedal stroke with forward motion. But, speed is nothing without ride quality. The ultimate blend of stiffness, efficiency, weight and performance also features ride quality unrivaled by any other aero machine. That means more PRs with less fatigue. Nothing feels better than going faster. And, faster feels better on a Parlee.
When we set out to develop the ultimate high performance road bike we combined our twenty years of experience in design, engineering and innovation, and looked to the latest in emerging technology and advancements that the industry has to offer. The result is RZ7.
We started with a clean sheet design, and incorporated our latest aerodynamic and technical developments. For instance, our second generation Recurve™ tubing profiles that provide unmatched drag reduction in real world riding conditions. In addition, the RZ7 features prominently our watt saving, SpeedShield™ disc brake shroud technology, first introduced on our Eurobike Gold-Award winning TTiR. We also incorporated fully integrated and hidden cabling, fully hidden thru axles and compatibility with the latest wide and high volume tires and wheel-sets.
We infused our proven Z carbon technology, using a proprietary blend of high performance, pre-preg carbon fiber, and our very precise carbon lay-up schedule. Z carbon technology provides every Parlee with not only best in class light weight but also peerless ride quality, frame stiffness and responsive handling. The RZ7 is not only a nod to our past but also a vision of our future.
*Specs may differ from images shown
Frame Size | X-Small | Small | Medium | Large | X-Large |
---|---|---|---|---|---|
Top Tube Length (virtual) (mm) | 510 | 530 | 550 | 570 | 590 |
Head Angle | 71.25° | 72.25° | 73.15° | 73.25° | 73.25° |
Seat Tube Angle | 74.25° | 73.65° | 73.5 | 73.25° | 73.25° |
Chainstay Length (mm) | 415 | 415 | 415 | 415 | 415 |
BB Drop (mm) | 75 | 75 | 75 | 75 | 75 |
Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 |
Standover Height (mm) | 737 | 752 | 769 | 802 | 823 |
Head Tube Length (mm) | 100 | 120 | 143 | 167 | 193 |
Front Center (mm) | 565 | 572 | 583 | 599 | 619 |
Reach (mm) | 367 | 375 | 386 | 397 | 409 |
Stack (mm) | 505 | 527 | 552 | 576 | 600 |
Wheelbase (mm) | 968 | 975 | 986 | 1003 | 1023 |
Trail (mm) | 70 | 63 | 57 | 57 | 57 |
Specs
Frame | Carbon |
---|---|
Fork | RZ7, carbon disc, tapered steerer, integrated crown race, 12mm through axle, integrated SpeedShields |
Wheels | Zipp 303 S |
Tires | Goodyear Vector 4S |
Bottom Bracket | Press Fit 30 (68mm x 46mm) |
Crankset | SRAM Force |
Chainrings | 46/33T |
Cassette/Freewheel | 10-33T |
Brakes | DISC, flat mount front and rear, 140 or 160mm rotors, internally routed |
Handlebars | PRO Vibe Evo |
Stem | PRO Vibe Evo |
Headset | Integrated Cane Creek, IS47 upper, IS52 lower |
Seatpost | Parlee Carbon |
Pedals | Sold Separately |
Saddle | Ergon SR Allroad Core Comp |
Extras | Parlee Carbon Cages |
* Subject to change without notice.
Part Numbers
Option | MPN |
---|---|
Midnight Blue / X-Small / 700c | CBRZXSBLF2X |
Midnight Blue / Small / 700c | CBRZSMBLF2X |
Midnight Blue / Medium / 700c | CBRZMDLBF2X |
Midnight Blue / Large / 700c | CBRZLGBLF2X |
Midnight Blue / X-Large / 700c | CBRZXLBLF2X |
Arena Red / X-Small / 700c | CBRZXSRDF2X |
Arena Red / Small / 700c | CBRZSMRDF2X |
Arena Red / Medium / 700c | CBRZMDRDF2X |
Arena Red / Large / 700c | CBRZLGRDF2X |
Arena Red / X-Large / 700c | CBRZXLRDF2X |
