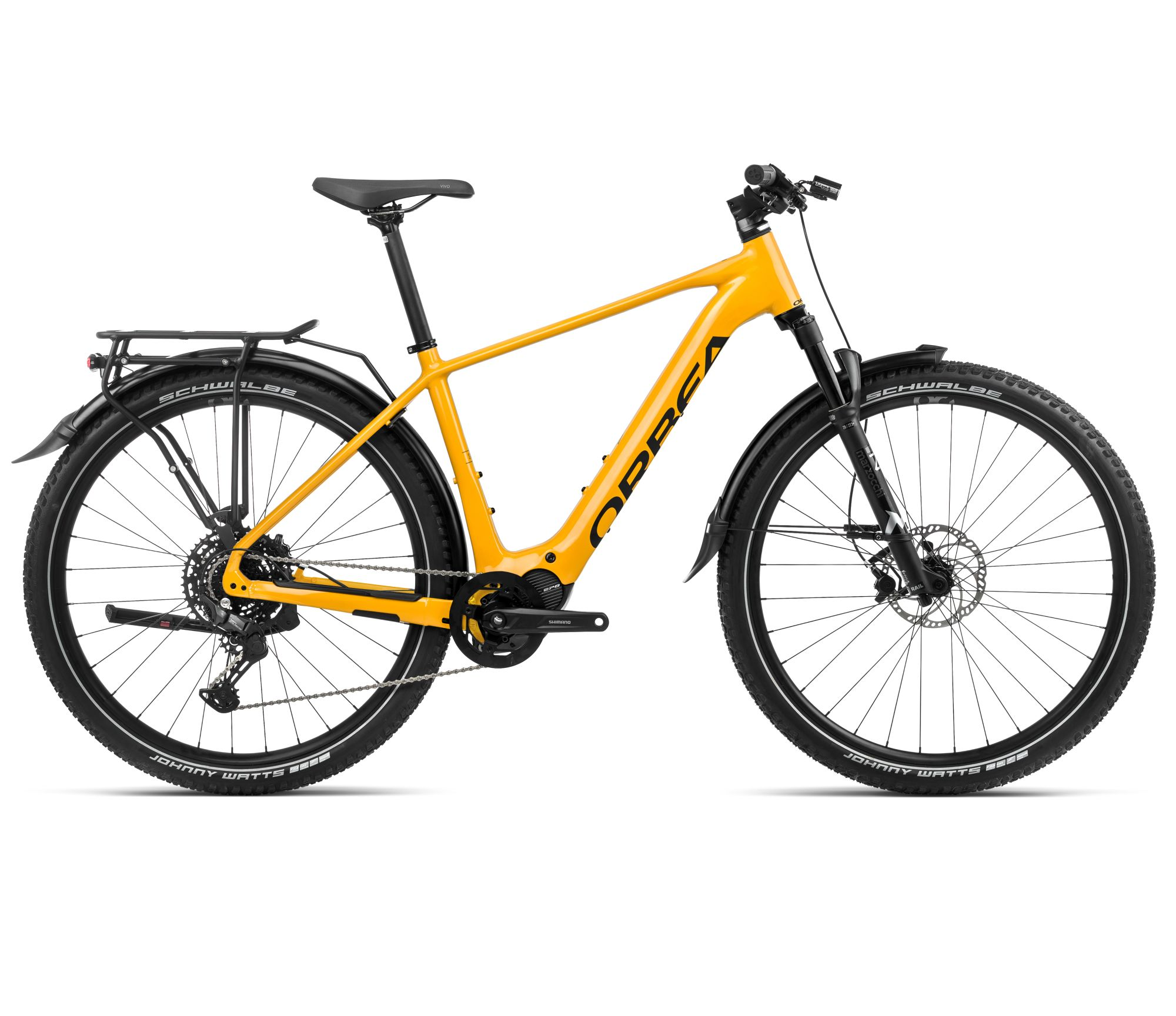

Orbea Kemen SUV 30

Orbea Kemen SUV 30
  • Color: Mango - Black
  • Color: Metallic Night Black
  • Color: Urban Green - Black
$4,399.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Out of Stock - Contact us to see when it will come into stock or for advice on alternate options.

Details

ESCAPE THE EVERYDAY

The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious, and effortless, Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breathe fresh air on your way to work, and let Kemen take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane, and have an urban adventure.

KEMEN
READY FOR THE CITY
Kemen owns the city streets, designed for speed and comfort. Confident, secure handling means you don't worry if your ride includes rougher roads or gravel paths.

KEMEN SUV
READY FOR LIFE
Kemen SUV is prepared for your busy schedule with bigger tires with more aggressive tread and strong carrier for heavy loads and rough roads.

LET KEMEN TAKE THE STRAIN
The EP8 motor has plentiful power for the steepest roads and the heaviest loads, more than enough to get you up to speed quickly and whisk you to work without breaking a sweat. The cutting-edge battery means that even with a fully loaded bike you can expect over 5 hours of riding.

TIRELESS
Kemen's wider tires add stability and control no matter the terrain. More aggressive treads prioritize performance off-road while slicker tires work best on hard surfaces.

RACK IT UP
Kemen SUV´s sturdier carrier can take a child seat and is ready for heavier loads. Kemen has a slimmer, lighter rack with lots of mounting options.

FAST AND CLEAN
Both models come with sleek, sturdy fenders which ensure you arrive at your destination clean and dry. Kemen SUV uses wider fenders, with a custom shape to offer more protection when things get dirty.

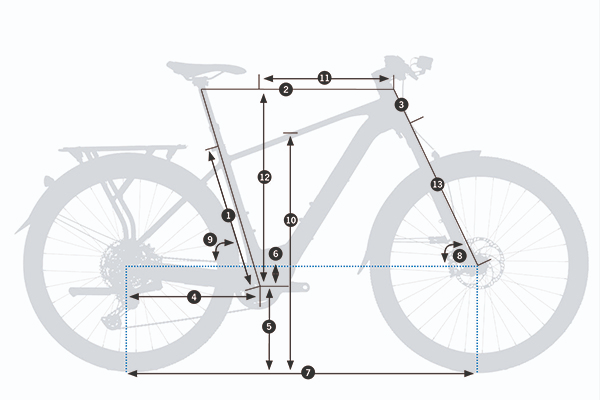

Geometry
Sizes:
SMLXL
1 - SEAT TUBE (C-T) 400 453 483 533
2 - TOP TUBE (EFF) 563 576 606 642
3 - HEAD TUBE 110 115 132 153
4 - CHAINSTAY 445 445 445 445
5 - BB HEIGHT 307.5 307.5 307.5 307.5
6 - BB DROP 63 63 63 63
7 - WHEELBASE 1134 1142 1173 1211
8 - HEAD ANGLE 66.5º 67º 67º 67º
9 - SEAT ANGLE 75º 75º 75º 75º
10 - STANDOVER 781 810 833 866
11 - REACH 405 415 440 470
12 - STACK 617 624 640 659
13 - FORK LENGTH 513.5 513.5 513.5 513.5
RAKE 44 44 44 44
Sizes:
SizeHeight- INHeight- CM
S61.1"-66.9" 155-170
M65.0"-70.9" 165-180
L70.1"-74.8" 175-190
XL72.8"-78.74" 185-200

Specs

Pedals VP-537 Black
Fork Marzocchi Bomber Z2 100 QR15x110 E-Bike Optimized
Frame Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Tires Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
Brakes Magura AT2 Hydraulic Disc Easy Route Connection
Saddle Selle Royal Vivo Sport Men 145 x 269mm
Wheels Alloy, Tubeless, 29", 29c, 32H
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost Alloy 31.6x300mm Offset 0
Shifters Shimano Cues SL-U6000
Rear Derailleur Shimano Cues U6000 GS Shadow
Motor Shimano EP801
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Stem Alloy forged, 35mm interface, -6º, ICR
Chain KMC eGlide
Crankset Shimano Steps EM600
Chainrings Alloy EP8 36t w/chainguard
Handlebars OC Mountain Control MC31, Rise20, Width 800
Tape/Grips OC Lock On
Accessories & Extras REAR CARRIER: Orbea Kemen Suv oversize Alloy Rear Carrier, w/Mik HD and Ortlieb QL3.1 system
MUDGUARD: CURANA Apollo 70mm
FRONT POSITION LIGHT: Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
FRONT LIGHT: Lezyne Ebike POWER STVZO PRO E115 with remote 310 lumens
REAR LIGHT: Lezyne Super Bright CARRIER STVZO Alert Technology 12Lumen
QUICK STAND: MASSLOAD rear adjustable
Cassette/Freewheel Shimano CS-LG300 11-48t 10-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Mango - Black / Small / 29-inch 8434446498145 R63316VF
Mango - Black / Medium / 29-inch 8434446498176 R63318VF
Mango - Black / Large / 29-inch 8434446498206 R63319VF
Mango - Black / X-Large / 29-inch 8434446498237 R63321VF
Metallic Night Black / Small / 29-inch 8434446498152 R63316VG
Metallic Night Black / Medium / 29-inch 8434446498183 R63318VG
Metallic Night Black / Large / 29-inch 8434446498213 R63319VG
Metallic Night Black / X-Large / 29-inch 8434446498244 R63321VG
Urban Green - Black / Small / 29-inch 8434446498138 R63316VE
Urban Green - Black / Medium / 29-inch 8434446498169 R63318VE
Urban Green - Black / Large / 29-inch 8434446498190 R63319VE
Urban Green - Black / X-Large / 29-inch 8434446498220 R63321VE
