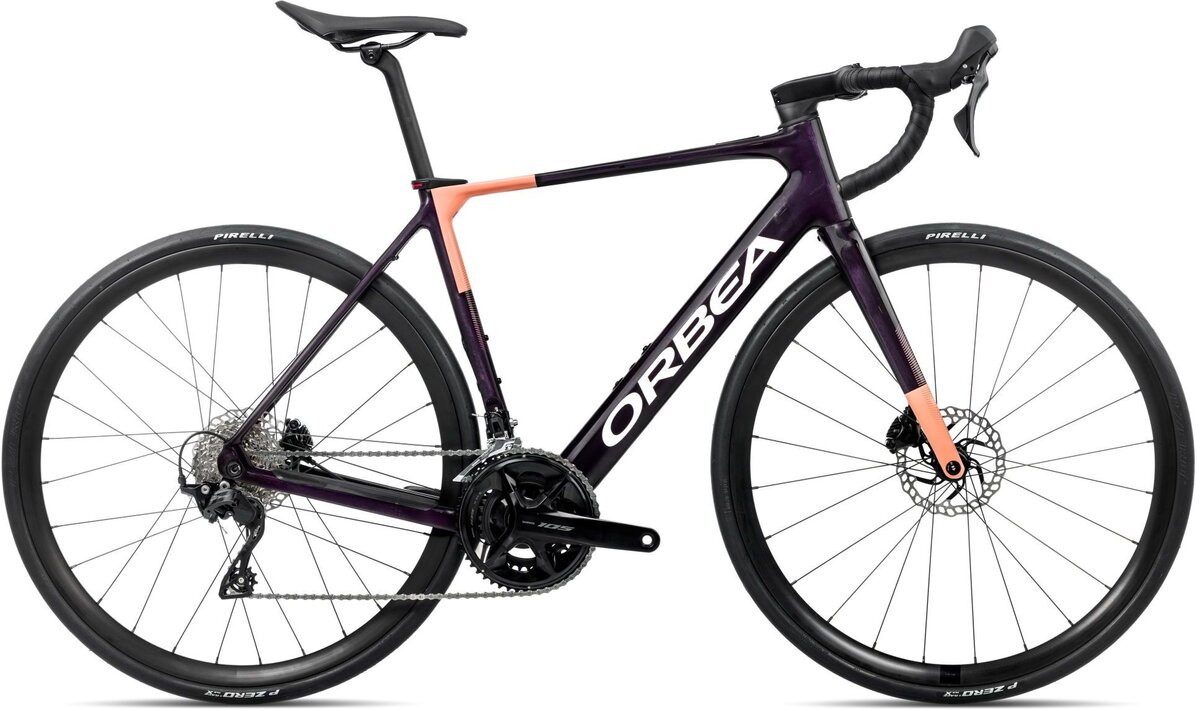

Orbea Gain M30

Orbea Gain M30
  • Color: Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)
  • Color: Halo Silver (Matt) - Blue Carbon View (Gloss)
$5,599.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Out of Stock - Contact us to see when it will come into stock or for advice on alternate options.

Details

Joyful Performance

Rider and bike working in perfect synergy, you're breathing hard and your heart is pumping but you are in control and having fun.

Enough power to turn gravity down a bit without dominating the ride. Gain's natural assistance blends invisibly into the background, so you feel fitter than ever. This isn't about riding faster; it isn't even about riding further, this is just about having more fun each and every time you ride.

Natural Performance
- Natural pedaling means silent and unobtrusive assistance at lower speeds and no added friction, leaving you free to pedal as normal at higher speeds.

Natural Handling
- Natural handling means tuning geometry and rigidity to optimize performance. In this respect, Gain is just like any great road bike.

Lightest In Class
- No other e-road bike with this battery capacity offers a lighter weight.

Stiffness.
Responsive Performance.
- There is no doubt about it, a frame that is stiff in the right places is key for performance.

Pure Road Geometry
- One of the most important points to consider when determining geometry is that the bike must be easy to ride, meaning you have precise control over the bike.

Sizes:
MeasurementXSSMLXLXXL
Seat Tube (C-T) 430 460 490 515 540 570
Top Tube (EFF) 516 535 555 569 587 602
Head Tube 113 136 158 181 203 225
Chainstay 415 415 415 415 415 415
BB Drop 78 78 78 76 76 76
BB Height 263 263 263 265 265 265
Wheelbase 984 998 1011 1022 1035 1047
Head Angle 71° 71.2° 71.5° 72° 72.2° 72.5°
Seat Angle 74.5° 74° 73.5° 73.5° 73.2° 73.2°
Rake 50 50 50 50 50 50
Standover 728 756 782 803 830 844
Reach 370 378 386 394 402 410
Stack 525 547 569 591 613 635
Fork Length 380 380 380 380 380 380
Sizes:
SizeHeight
XS 61.1"-65.4"
S 65.7"-67.7"
M 68.1"-70.5"
L 70.9"-72.8"
XL 73.2"-75.2"
XXL 75.6"-81.5"

Specs

Frame Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Wheels Alloy, Tubeless, 700c, 21c
Hubs Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite, Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Tires Pirelli P ZERO™ Race SmartEVO TLR 700x30c
Crankset Shimano 105 R7100 34x50t
Shifters Shimano R7120
Front Derailleur Shimano 105 R7100
Rear Derailleur Shimano 105 R7100
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M6100
Brakes Shimano R7170 Hydraulic Disc
Handlebars OC Road Performance RP21 Alu SL, Reach 80, Drop 125
Stem OC Road Performance RP22, +15º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle Fizik Aliante R5
Accessories & Extras Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
Motor Mahle motor hub X20, ALC
Battery Mahle iX350 36V 353Wh
Controller/Display Mahle Pulsar One monochrome ANT+ LEV
Charger Mahle Active Charger up to 4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / X-Small / 700c 08434446833328 S60702GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / Small / 700c 08434446833359 S60703GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / Medium / 700c 08434446833380 S60705GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / Large / 700c 08434446833410 S60707GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / X-Large / 700c 08434446833441 S60709GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / XX-Large / 700c 08434446833472 S60710GM
Halo Silver (Matt) - Blue Carbon View (Gloss) / X-Small / 700c 08434446833335 S60702GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / Small / 700c 08434446833366 S60703GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / Medium / 700c 08434446833397 S60705GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / Large / 700c 08434446833427 S60707GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / X-Large / 700c 08434446833458 S60709GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / XX-Large / 700c 08434446833489 S60710GN
