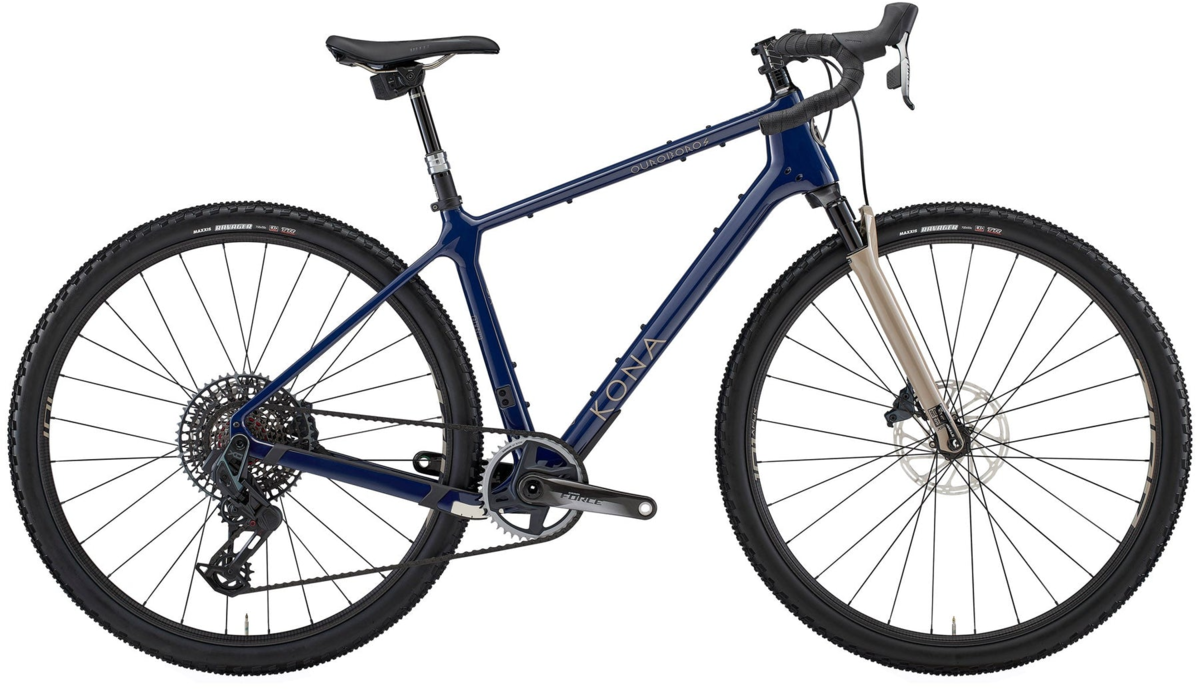

Kona Ouroboros Supreme

Kona Ouroboros Supreme
  • Color: Gloss Midnight w/ RS Kwiqsand Decals
$6,999.00
Color: Gloss Midnight w/ RS Kwiqsand Decals
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Out of Stock - Contact us to see when it will come into stock or for advice on alternate options.

Details

Unmatched in ride quality and capability, the Supreme lives up to its name by turning every head it passes – beckoning to those who want nothing holding them back. Remote shifting and dropper? Check. Carbon wheels? Check. 40mm of high-performance front suspension? Oh yeah. You read that right.

Geometry
Sizes:
Size485052545658
1 ST Length 410 410 455 455 500 535
2 TT Length 530 544 559 576 593 613
3 Reach 380 385 390 395 400 405
4 Stack 560 575 590 610 630 660
5 Standover 716 721 758 768 806 840
6 HT Angle 69.5 69.5 69.5 69.5 69.5 69.5
7 HT Length 115 131 147 172 193 225
8 ST Angle 75 74.5 74 73.5 73 72.5
9 CS Length 445 445 445 445 445 445
10 BB Drop 75 75 75 72 72 72
11 BB Height 292 292 292 295 295 295
12 Wheelbase 1059 1069 1080 1094 1106 1123
13 Front Center 625 635 646 659 671 687
14 Fork Length 420 420 420 420 420 420
15 Fork Offset 55 55 55 55 55 55
Sizes:
Height/InchesHeight/MetricInseam/InchesInseam/MetricRoveLibreSutra/OuroborosDewsCoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

Specs

Frame Kona Carbon
Fork RockShox Rudy Ultimate XPLR, Charger Race Day, 40mm travel, tapered, 100 x 12
Rims Zipp 101 XPLR, 27mm internal width, tubeless, carbon, with tubeless tape
Hubs Zipp 101 XPLR
Spokes Zipp 101 XPLR
Tires Maxxis Ravager 700 x 50mm TR EXO
Bottom Bracket SRAM Press-Fit 86.5 DUB Wide
Crankset SRAM Force 1 DUB Wide
Chainrings SRAM Force 1 Wide 40t X-Sync, direct mount
Shifters SRAM Force ETAP AXS
Rear Derailleur SRAM XO Eagle Transmission
Cassette/Freewheel SRAM XO Eagle Transmission 10-52t, XD
Chain SRAM X0 Eagle Transmission Flattop
Brakes SRAM Force Hydraulic
Rotors SRAM Centerline Centerlock 180mm
Brake Levers SRAM Force ETAP AXS
Handlebars Ritchey Venturemax WCS/Venturemax XL WCS, 24-degree flare, 4.6-degree backsweep, 48-50: 460mm; 52-54: 480mm; 56: 500mm; 58: 520mm
Tape/Grips Smanie Elite bar tape
Stem Ritchey Trail WCS, 0-degree, 48-52: 45mm; 54-58: 60mm
Headset FSA Orbit No. 57, ZS 44/56
Seatpost RockShox Reverb AXS 31.6mm, 48-50: 100mm travel; 52-58: 125mm travel
Saddle WTB Volt Medium Stainless Fusion
Accessories & Extras batteries

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Midnight w/ RS Kwiqsand Decals / 48cm / 700c 841073152384 B36ORS48
Gloss Midnight w/ RS Kwiqsand Decals / 50cm / 700c 841073152391 B36ORS50
Gloss Midnight w/ RS Kwiqsand Decals / 52cm / 700c 841073152407 B36ORS52
Gloss Midnight w/ RS Kwiqsand Decals / 54cm / 700c 841073152414 B36ORS54
Gloss Midnight w/ RS Kwiqsand Decals / 56cm / 700c 841073152421 B36ORS56
Gloss Midnight w/ RS Kwiqsand Decals / 58cm / 700c 841073152438 B36ORS58
