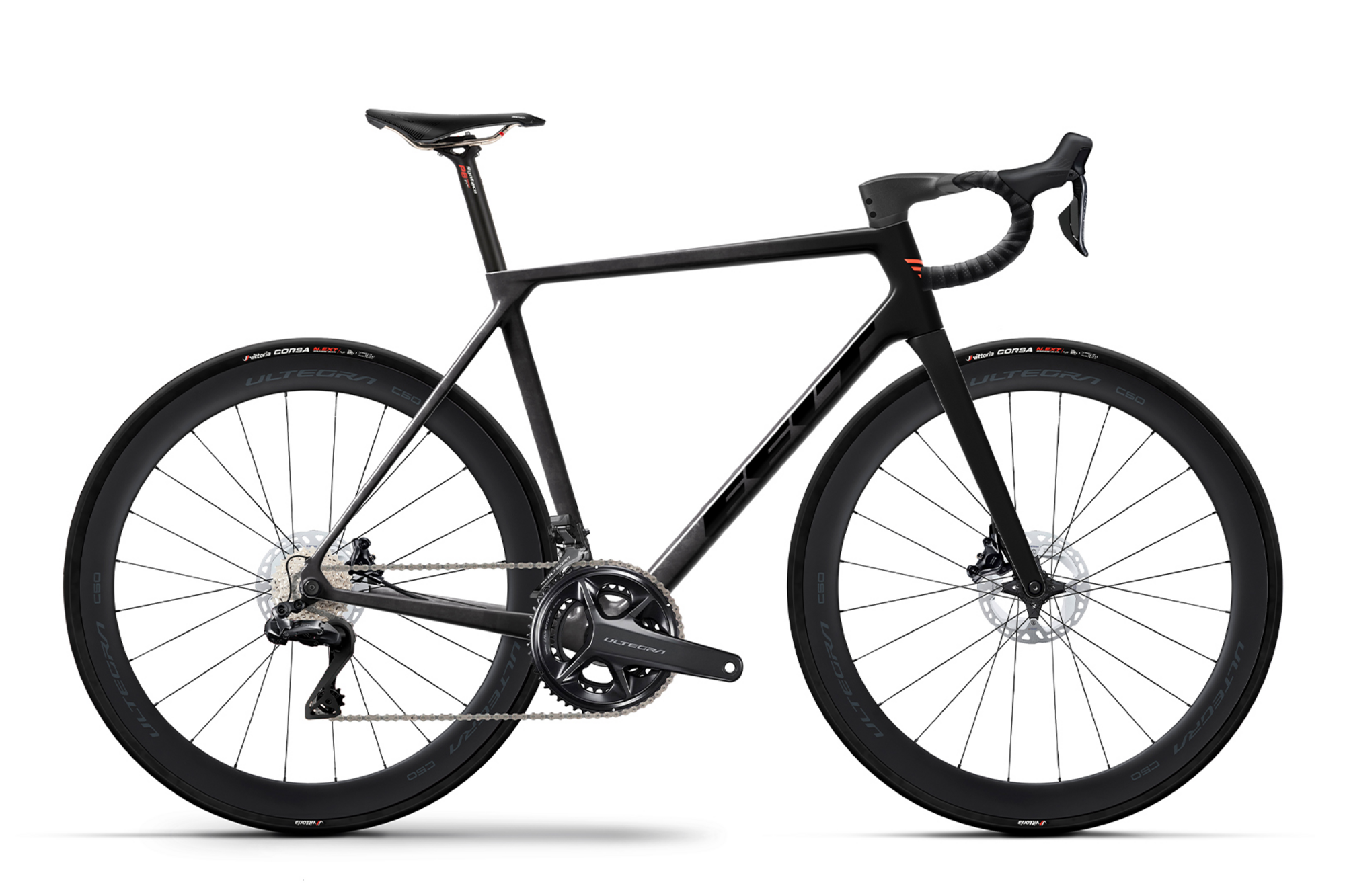

Felt Bicycles FR Advanced+ Ultegra Di2

Felt Bicycles FR Advanced+ Ultegra Di2
$7,499.00
Color: Matte Carbon Vapor/Felt Black/Fast Orange
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Out of Stock - Contact us to see when it will come into stock or for advice on alternate options.

Details

THE NEW FR ROAD BIKE

A new classic, redesigned and refined. Since its inception, the FR platform has showcased its prowess on climbs and technical descents. This new incarnation starts from scratch to further enhance the overall riding experience via a refined package for today's needs. The new design is sleek and dialed for pure function across varied terrain and without any extraneous add-ons. Focused purely on performance and ride dynamics, the new FR is engineered to function like an extension of you.

A NEW CLASSIC
The new FR Advanced + build features Shimano's Ultegra Di2 semi-wireless groupset with 12-speeds of optimized shifting performance. The complete package is ready for your hard training rides, zone 2 endurance sessions, and full-gas KOM efforts. Optimized to be an agile road bike, the FR Advanced + comes with an integrated Vision front-end for the best aesthetics and aero function.

ALL-AROUND PERFORMANCE
Power up the climb. Rip the descent. The all-new FR is focused on riders seeking performance. Whether putting in zone 2 training time or getting into the break on race day, the new FR provides the best all-around road platform to suit your needs. Its gimmick-free set-up means you've got a pure-bred bike ready to tackle whatever race day offers.

CLASSIC DESIGN FOR MAX STIFFNESS
The double diamond frame design guarantees maximum stiffness. It's the best technical engineering solution for a racing road bike made for speed and acceleration. This design ensures efficient power transfer, reactivity, and stability, allowing riders to confidently tackle out of the saddle uphill max efforts as well as flat sprints, and precision-guided descents with optimal responsiveness.

FULL INTEGRATION
The new FELT FR's integrated one-piece cockpit is designed to minimize aerodynamic drag and optimize the bike's performance. Combined with the integrated seatclamp design, the frame's new profile looks great and cheats the wind better than the previous generation. Internal cable routing further reduces drag and maintains the bike's sleek lines ensuring a clean and uncluttered look.

D-SHAPE FORK STEERER
The D-shape steerer is a technical marvel that allows for the use of a 1 1/8 - 1.5" headset bearing arrangement. This approach ensures the perfect cable integration without compromising the volume of the head tube. By maintaining a more slender and tapered head tube, the frame has a smaller frontal surface area and is more streamlined for aerodynamics.

ONE PREMIUM SUB-900G CARBON LAYUP
The new FR boasts a single carbon lay-up, ensuring optimal strength and stiffness without compromising on weight. All versions, from the top-end Shimano Dura Ace Di2 build to the entry level Shimano 105 mechanical, feature the same premium carbon construction. Utilizing high-quality unidirectional carbon fiber, the new FR series achieves the perfect balance of rigidity and responsiveness. This advanced construction is resulting in a frame that weighs sub 900 grams (in size 51).

Sizes:
Frame Size45485154565861
Top Tube Length494.8 mm 512 mm526.2 mm546.6 mm558.1 mm581.4 mm600.3 mm
Seat Tube Length405 mm 426 mm467 mm507 mm527 mm558 mm594.6 mm
Seat Tube Angle75.3 ° 74.5 °74 °73.5 °73.5 °73.3 °73 °
Head Tube Length90 mm 100 mm115 mm135 mm155 mm177 mm205 mm
Steering Angle70.5 ° 71.5 °72.4 °72.6 °73.2 °73.8 °73.8 °
Chain Stay Length406 mm 406 mm406 mm408 mm408 mm410 mm410 mm
Wheel Base967.4 mm 969.4 mm971.4 mm982.1 mm988.2 mm1005.3 mm1020.4 mm
Standover Height704 mm 720.6 mm750 mm782 mm802 mm827.9 mm860.8 mm
BB-Drop74 mm 74 mm74 mm72 mm72 mm72 mm72 mm
BB Height266.3 mm 266.3 mm266.3 mm268.3 mm268.3 mm268.3 mm268.3 mm
Fork Offset51 mm 51 mm51 mm45 mm45 mm45 mm45 mm
Stack496.2 mm 509.2 mm526.6 mm546.2 mm567.3 mm590.5 mm617.4 mm
Reach364.6 mm 370.8 mm375.2 mm384.8 mm390 mm404.2 mm411.5 mm
Stem Length80 mm 80 mm90 mm100 mm100 mm110 mm120 mm
Crank Length167.5 mm 167.5 mm170 mm172.5 mm172.5 mm175 mm175 mm
Sizes:
Frame SizeRider Height (cm)Rider Height 9in)
43144.7 - 152.4 4'9" - 5'0"
45144.7 - 152.4 4'9" - 5'0"
47152.4 - 167.6 5'0" - 5'5"
48152.4 - 167.6 5'0" - 5'5"
51167.6 - 172.7 5'5" - 5'8"
54172.7 - 177.8 5'8" - 5'10"
56177.8 - 182.8 5'10" - 6'0"
58182.8 - 187.9 6'0" - 6'2"
61187.9 - 195.5 6'2" - 6'5"

Specs

Pedals Sold Separately
Fork Felt FR 4.0, UHC Advanced carbon
Stem Vision Metron 5 ACR integrated bar/stem
Chain Shimano CN-HG901
Frame Felt FR 4.0, UHC Advanced carbon
Tires Vittoria Corsa N.EXT, 700x26 mm,
Brakes Shimano BR-R8170, 2-piston, Hydraulic disc brake
Rotors Shimano RT-MT800, 160 mm, Center lock
Saddle Prologo Dimension 143 TIROX
Wheels Shimano Ultegra, WH-R8170, Tubeless ready, Center lock, 12x100/12x142 mm
Headset IS (NO.42)
Crankset Shimano Ultegra, FC-R8100, 52/36 T
Seatpost Syntace P6 Carbon HiFlex
Shifters Shimano Ultegra Di2, ST-R8170
Handlebars Vision Metron 5 ACR integrated bar/stem
Tape/Grips Felt VelvetGel tape with 3M reflective base
Brake Levers Shimano BR-R8170
Rear Derailleur Shimano Ultegra Di2, RD-R8050 Shadow, 24-S
Front Derailleur Shimano Ultegra Di2, FD-R8050, Brazed-On
Cassette/Freewheel Shimano CS-R8100, 11-30 T

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Carbon Vapor/Felt Black/Fast Orange / 61cm / 700c 9010654141203 9412400561
Matte Carbon Vapor/Felt Black/Fast Orange / 51cm / 700c 9010654141180 9412400551
Matte Carbon Vapor/Felt Black/Fast Orange / 58cm / 700c 9010654141104 9412400558
Matte Carbon Vapor/Felt Black/Fast Orange / 56cm / 700c 9010654141081 9412400556
Matte Carbon Vapor/Felt Black/Fast Orange / 48cm / 700c 9010654195688 9412400548
Matte Carbon Vapor/Felt Black/Fast Orange / 54cm / 700c 9010654141005 9412400554
Matte Carbon Vapor/Felt Black/Fast Orange / 45cm / 700c 9010654195701 9412400545
