Details

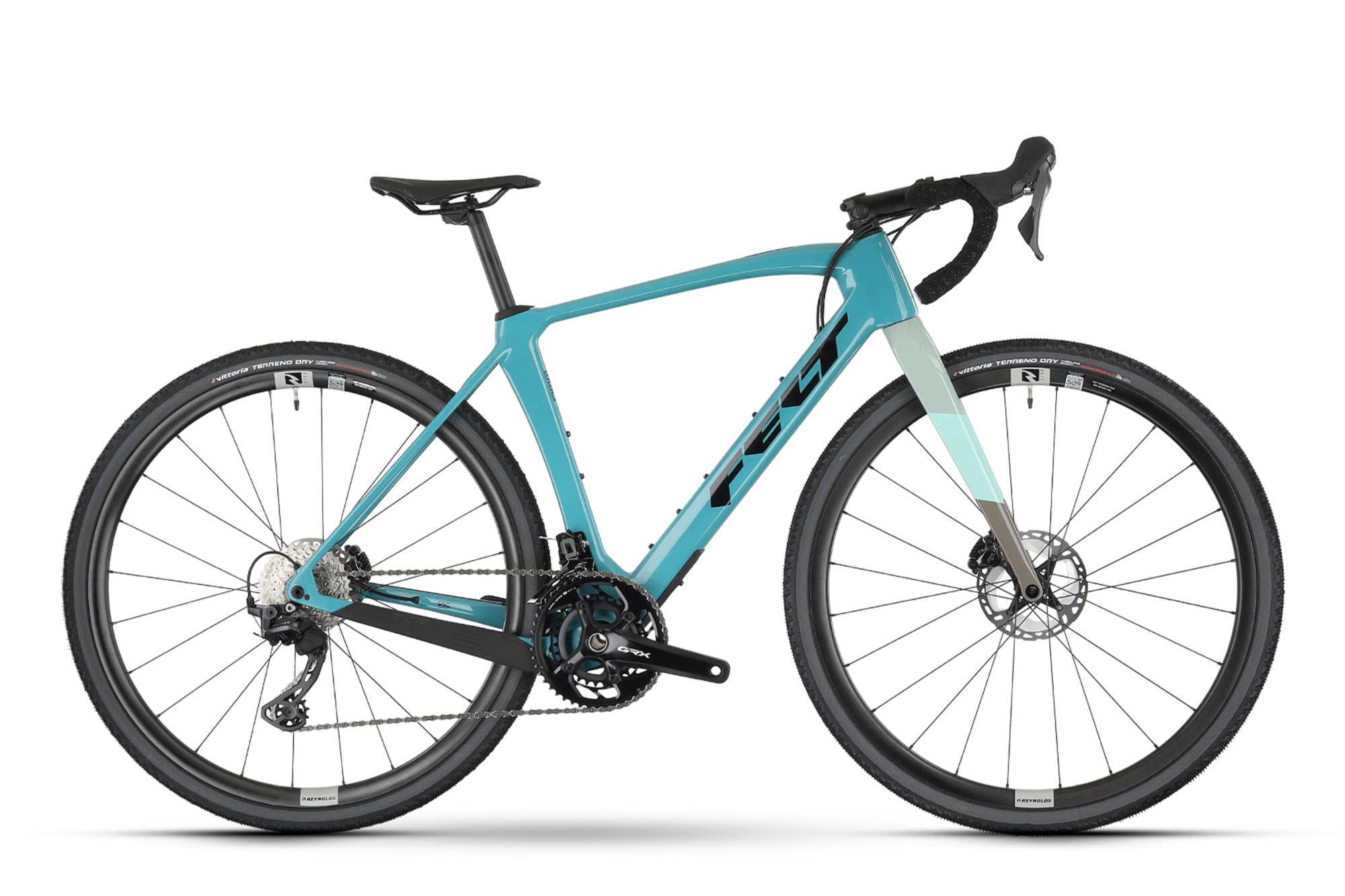

The BREED CARBON paired with Shimano's mechanical GRX 820 groupset. Performance and dependability come together for this race-winning model.
MADE TO RACE.
The BREED CARBON with Shimano GRX 820 is a race-winning gravel bike designed to go the distance across varied terrain and demanding conditions. With a wide gear range and the dependability of mechanical shifting, this model comes equipped to handle all of your training and racing needs across gravel.
GRAVEL GEARED
Shimano's 2x12-speed GRX 820 groupset provides a maximum gear range for gravel. Whether you are searching for that granny-gear on a gnarly climb or attacking a wind-swept straightline, you'll have the low and high gears (and everything in-between).
WHEEL SPEED
Reynold has worked with us to create a custom version of their G700 wheels. Smooth hubs paired with a modern rim width offers optimal performance and durability in an aluminum-rimmed set-up. Tubeless-ready.
GRIPPY GRIP
Vittoria's proven Tirreno Dry TNT tires in a 700x38mm set-up provide great performance on most gravel race and training tracks. Dependable and quick and ready for tubeless.
47 | 51 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
(A) Top Tube Length | 530 mm | 540 mm | 550 mm | 570 mm | 580 mm | 600 mm |
(B) Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm | 595 mm |
(C) Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73 ° | 73 ° | 72 ° |
(D) Head Tube Length | 100 mm | 116 mm | 130 mm | 145 mm | 160 mm | 180 mm |
(E) Steering Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° |
(F) Chain Stay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
(G) Wheel Base | 1023 mm | 1029 mm | 1040 mm | 1045 mm | 1050 mm | 1060 mm |
(H) Standover Height | 716 mm | 724 mm | 770 mm | 796 mm | 823 mm | 854 mm |
(I) BB-Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
(K) Fork Offset | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
(L) Stack | 544 mm | 562 mm | 575 mm | 591 mm | 607 mm | 626 mm |
(M) Reach | 374 mm | 379 mm | 385 mm | 389 mm | 394 mm | 398 mm |
(N) Stem Length | 80 mm | 90 mm | 100 mm | 100 mm | 110 mm | 120 mm |
(O) Crank Length | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
48 | 51 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
RIDER HEIGHT |
152.4 - 167.6 cm 5’0” - 5’5” |
167.6 - 172.7 cm 5’5” - 5’8” |
172.7 - 177.8 cm 5’8” - 5’10” |
177.8 - 182.8 cm 5’10” - 6’0” |
182.8 - 187.9 cm 6’0” - 6’2” |
187.9 - 195.5 cm 6’2” - 6’5” |
RIDER INSEAM |
71.2 - 74.9 cm 28.0” - 29.5” |
75.1 - 76.2 cm 29.6” - 30.0” |
77.9 - 82.0 cm 30.7” - 32.3” |
81.0 - 85.0 cm 31.9” - 33.5” |
84.0 - 87.1 cm 33.1” - 34.3” |
87.3 - 91.1 cm 34.4” - 35.9” |
Specs
Pedals | Sold Seperately |
---|---|
Fork | Felt BREED 1.0, UHC Advanced carbon fiber |
Stem | Devox StemR.A1, -7 ° |
Chain | Shimano CN-M8100 |
Frame | Felt BREED 1.0, UHC Advanced carbon fiber |
Tires | Vittoria Terreno Dry, 700x38 mm, |
Brakes | Shimano BR-RX820, 2-piston, Hydraulic disc brake |
Rotors | Shimano RT-MT800, 140 mm, Center lock |
Saddle | Prologo Dimension NDR T4.0 |
Wheels | Reynolds G700 Custom, Center lock, 12x100/12x142 mm |
Headset | IS (NO.42) |
Crankset | Shimano GRX, FC-RX820, 48/31 T |
Seatpost | Devox Post.C2, 350 mm |
Shifters | Shimano GRX, ST-RX810 |
Handlebars | Devox DBar.A1 GXA 31.8 mm, 440 mm |
Rear Derailleur | Shimano GRX, RD-RX820, 24-S |
Cassette/Freewheel | Shimano CS-R8100, 11-34 T |
Front Derailleur | Shimano GRX, FD-RX820, braze-on |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Limelight / 51cm / 700c | 9010654172177 | 9412406051 |
Scrub / 51cm / 700c | 9010654172085 | 9412405951 |
Limelight / 47cm / 700c | 9010654172054 | 9412406047 |
Scrub / 56cm / 700c | 9010654172030 | 9412405956 |
Limelight / 61cm / 700c | 9010654172238 | 9412406061 |
Scrub / 61cm / 700c | 9010654171774 | 9412405961 |
Scrub / 47cm / 700c | 9010654172016 | 9412405947 |
Scrub / 58cm / 700c | 9010654172061 | 9412405958 |
Limelight / 54cm / 700c | 9010654172207 | 9412406054 |
Limelight / 58cm / 700c | 9010654172221 | 9412406058 |
Limelight / 56cm / 700c | 9010654172191 | 9412406056 |
Scrub / 54cm / 700c | 9010654171828 | 9412405954 |
